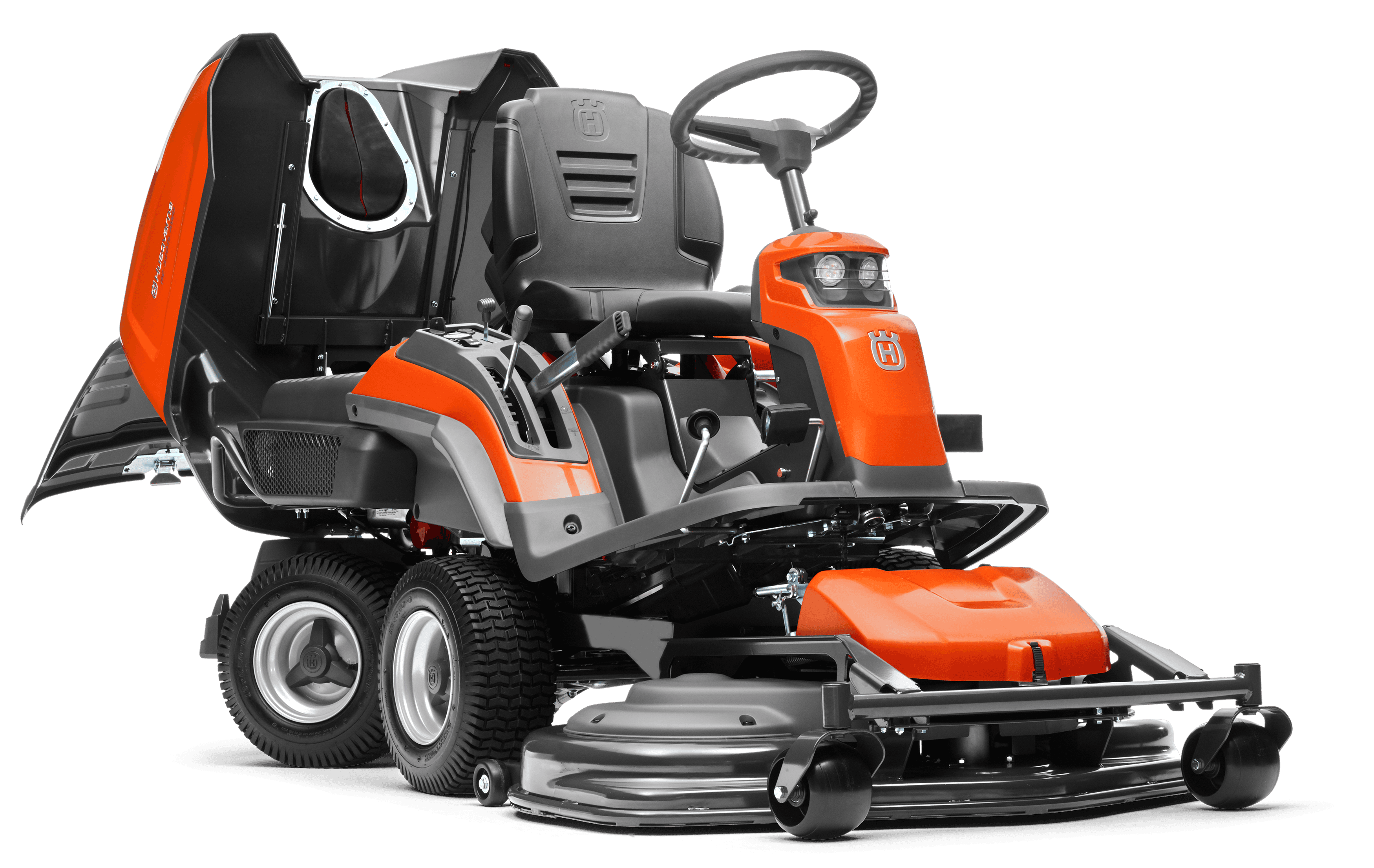

RC 320Ts AWD

$19,999.00Rec. retail price incl. GST SKU: 967628811

Power/fuel typePetrol
Cutting width, min103 cm

Product description

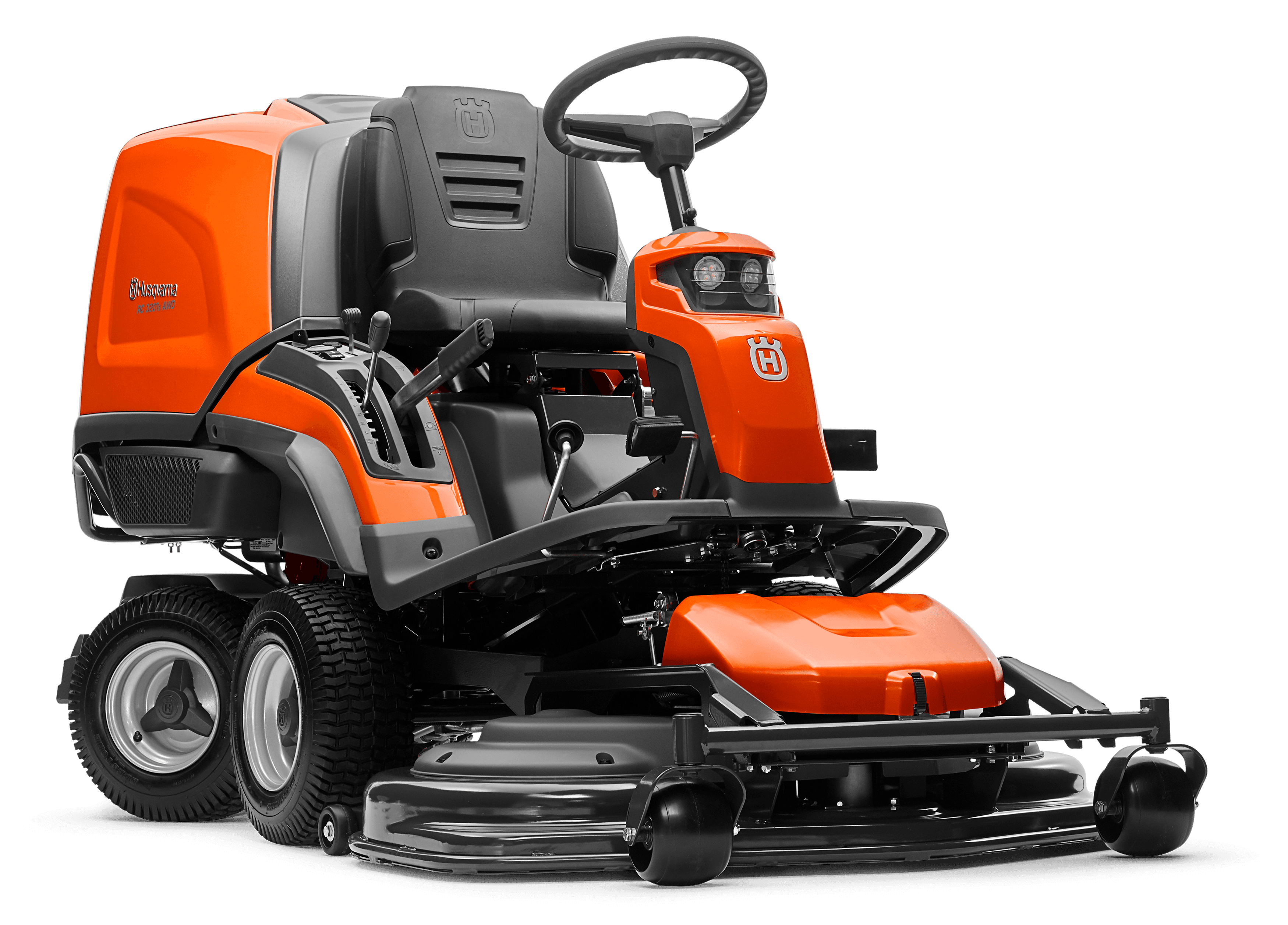

The RC 320Ts AWD Rider offers durable effectiveness, versatility and ease of use though innovative design. Its unique, non-clogging collection system feeds clippings straight from the front-mounted cutting deck to the 300 l bag. Automatic compaction increases run time between emptying, so you get more done. Articulated powered steering allows easy tight turns for superior manoeuvrability. All Wheel Drive means superior power and traction in all conditions. Cutting deck servicing and cleaning is tool-free, thanks to the unique 90° service position. Unbeaten area coverage and huge collection capacity make this a truly worthwhile investment for larger gardens. Price is complete with Combi Deck 103 (103cm).

Product Information

Features (26)

All-Wheel-Drive (AWD)

All-Wheel Drive secure traction on all areas

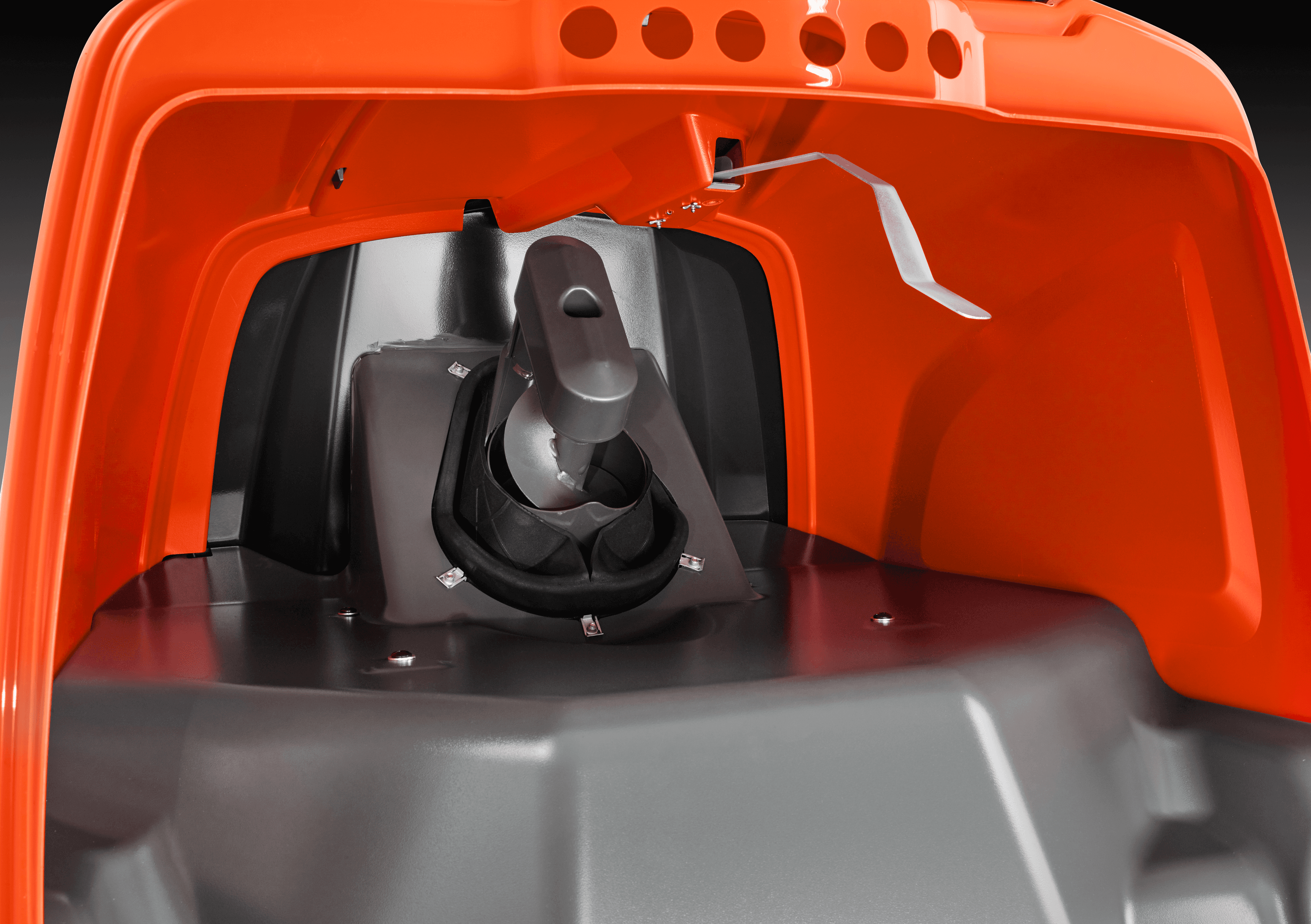

Non-clog collection. Compacting grass in collector, meaning bigger area coverage. The efficient collection leaves a clean lawn as a result. image

ACTech

Non-clog collection and compacting of grass in collector.

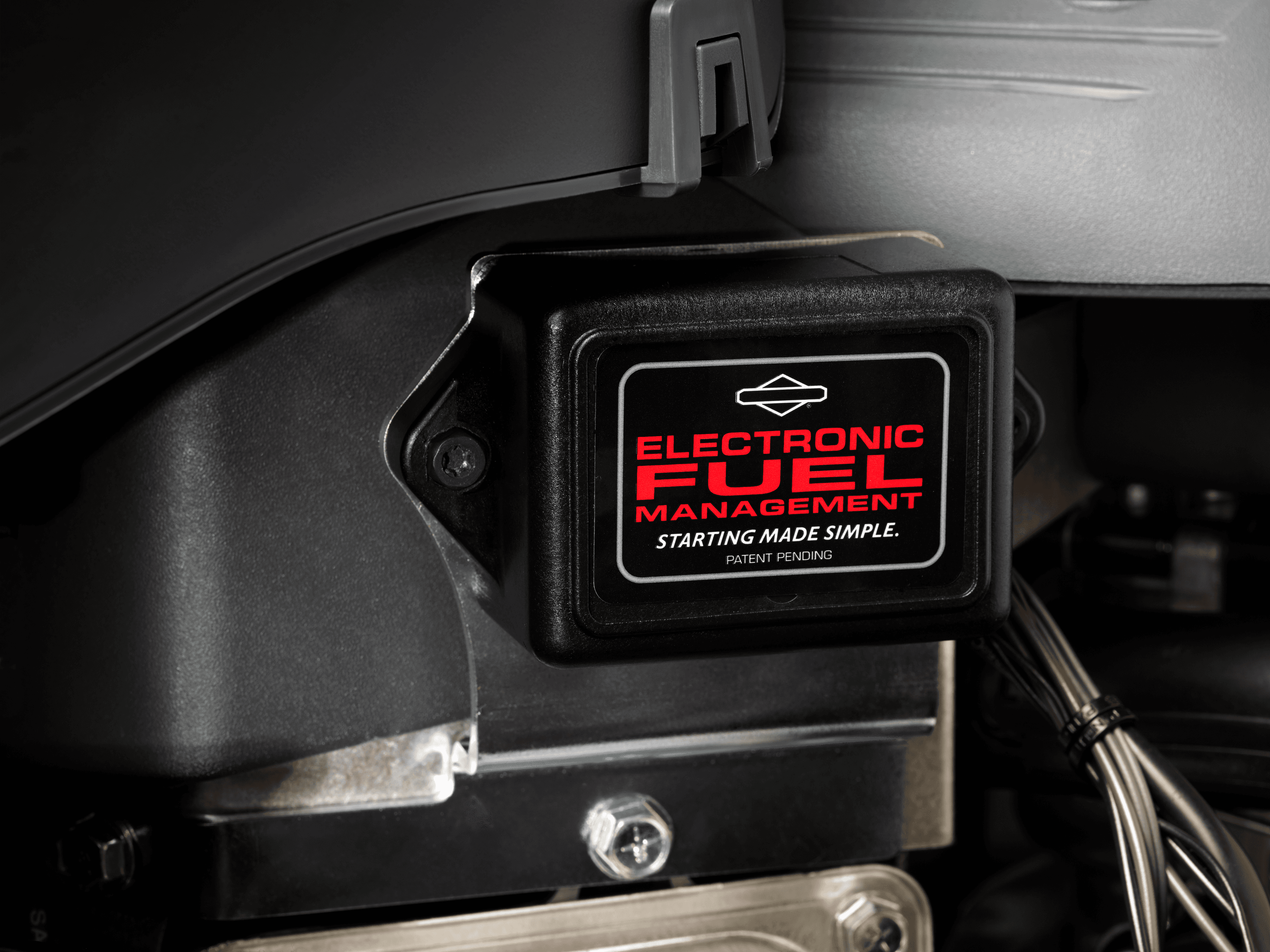

Easy to get operating under any weather conditions. No choking needed, just turn the key and go. image

Turn key start

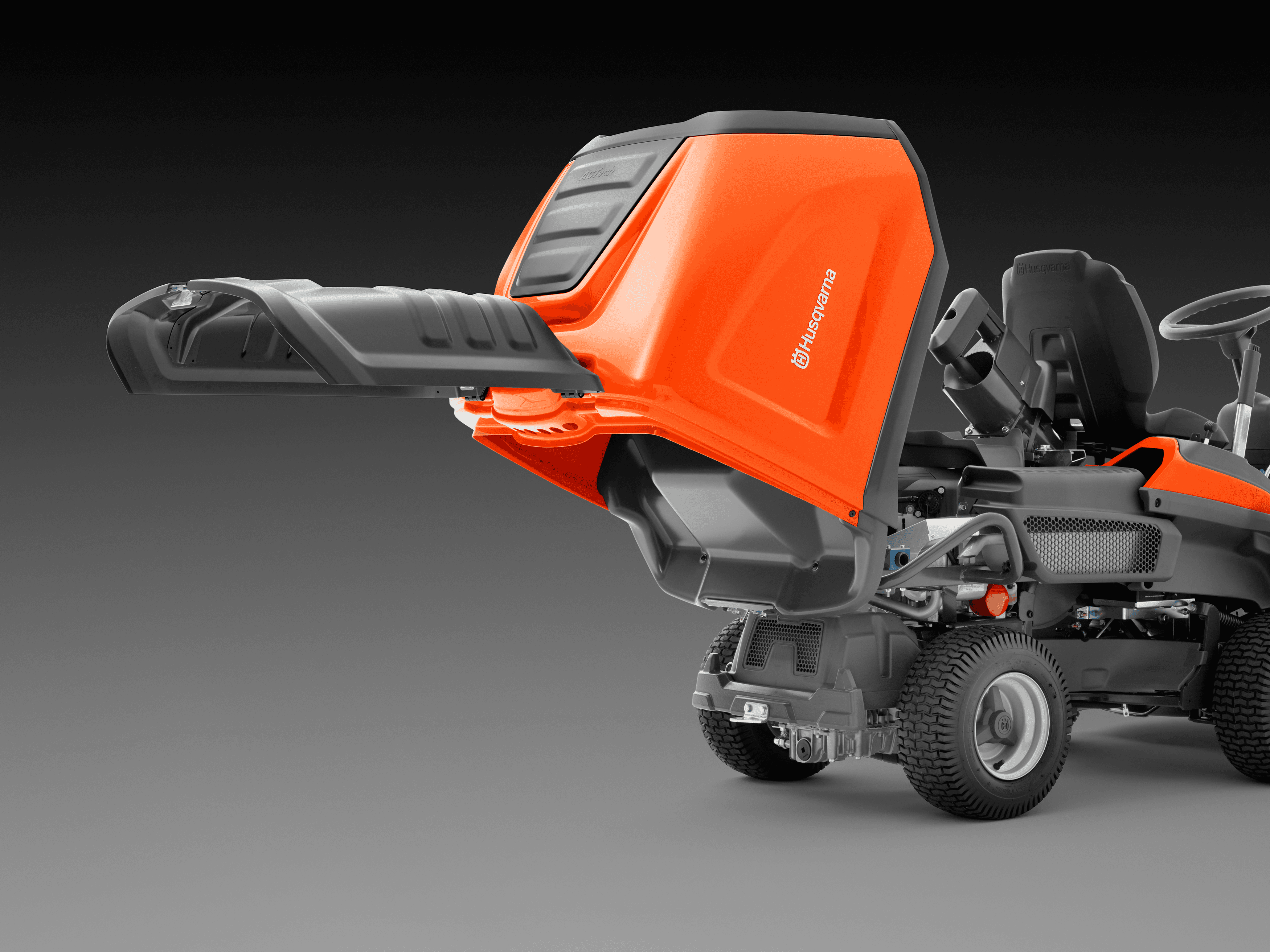

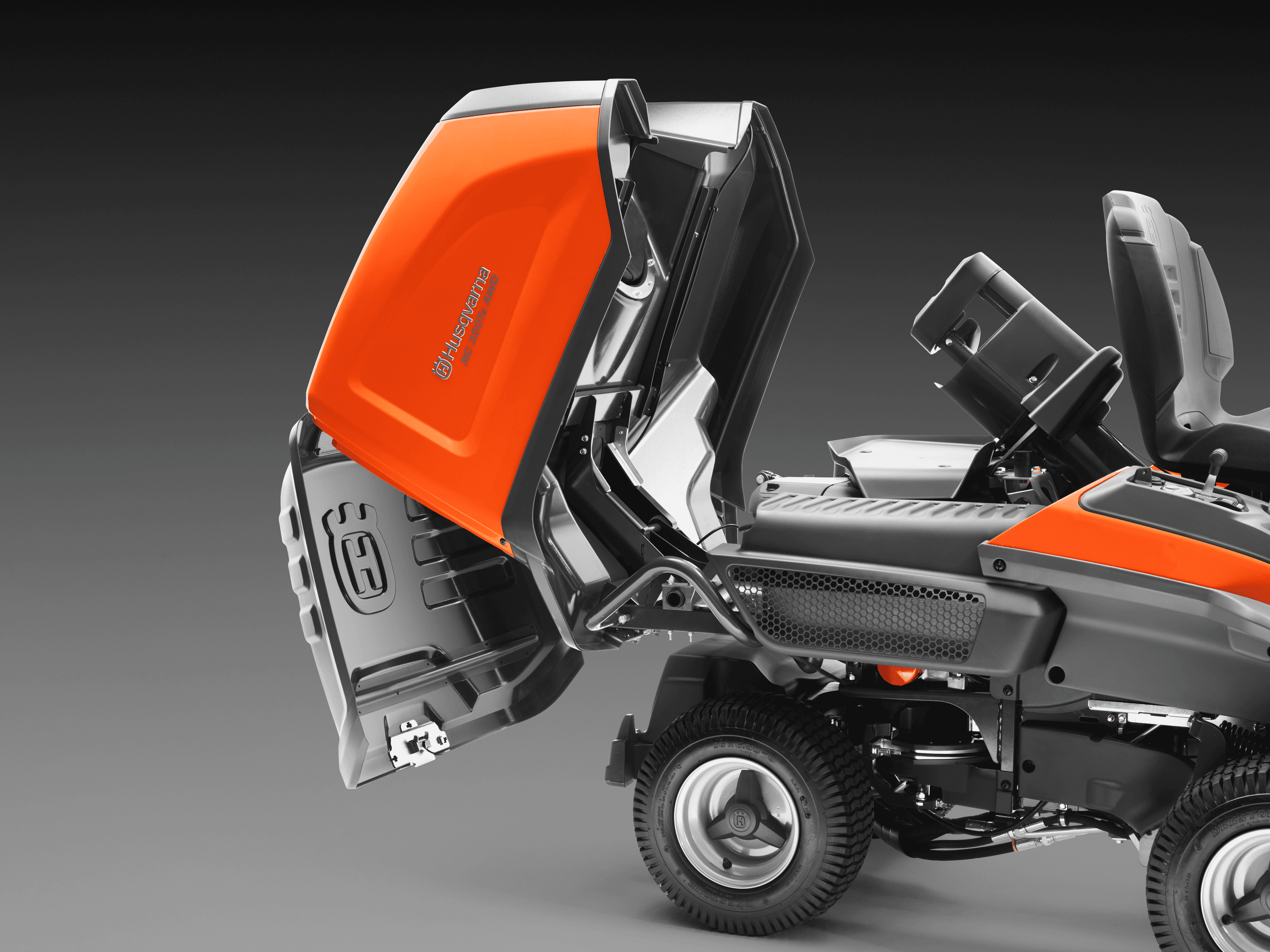

The integrated collector is easily emptied from the driver's seat image

Empty collector from seat

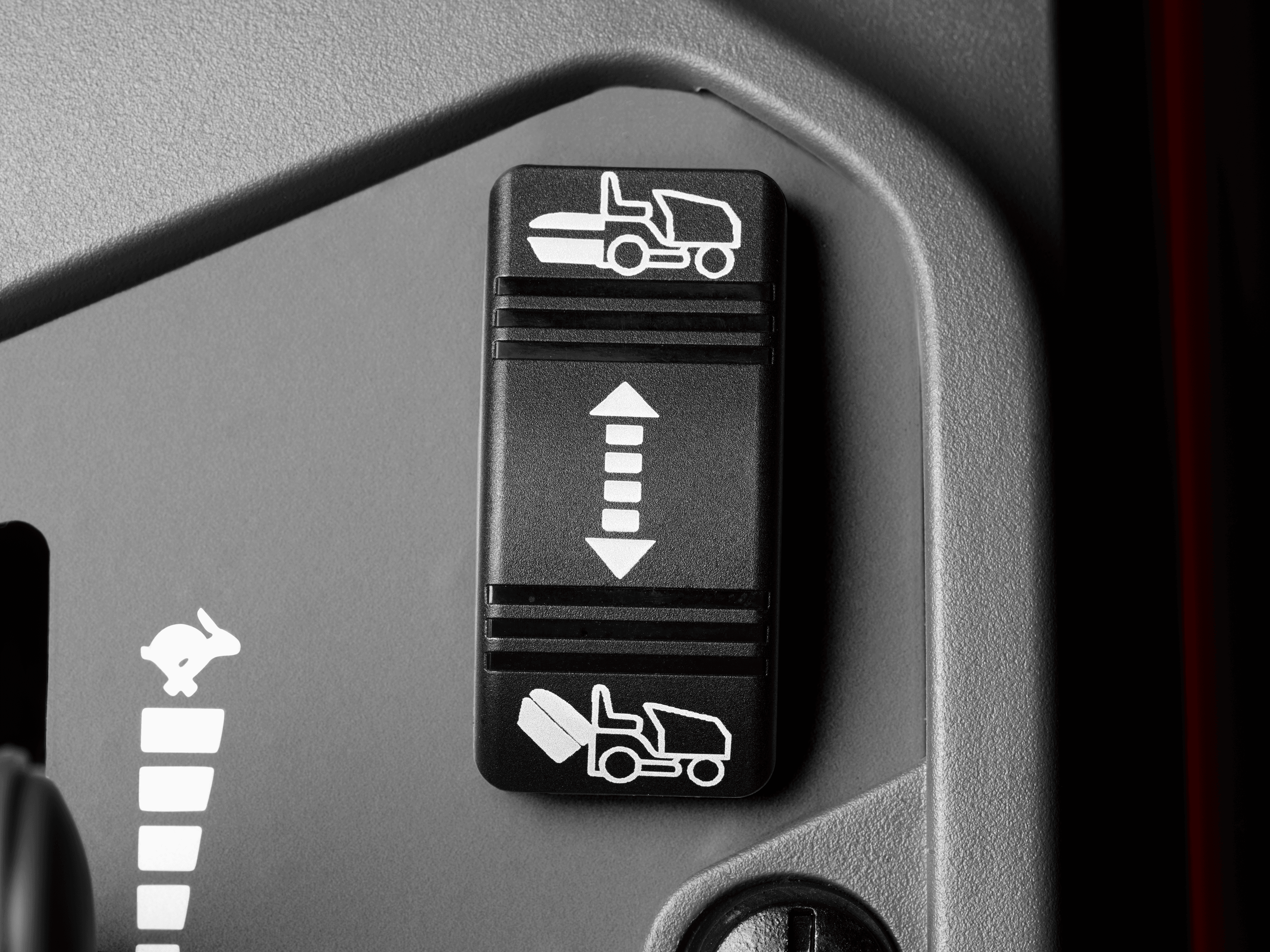

Non-collecting mode

Switch from collecting to non-collecting with a push on the button

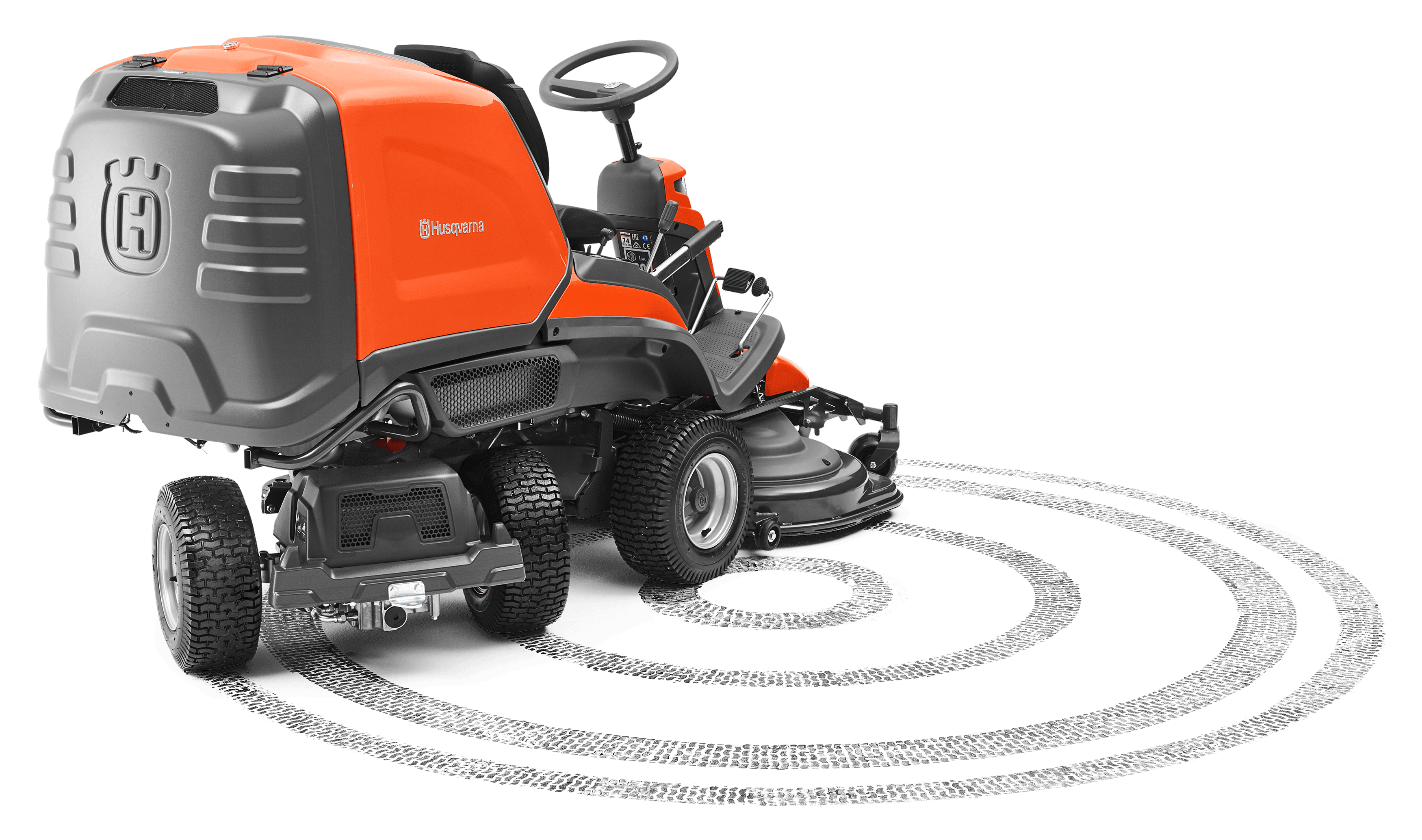

Articulated steering

Articulated steering for excellent manoeuvrability

Power-assisted steering makes driving less strenuous and more enjoyable. image

Power steering

Power steering makes more enjoyable drive

Speed and direction are managed by pedals, which lets you keep both hands on the steering wheel, for optimum driving control. image

Pedal-operated hydrostatic transmission

The tilting hood and easy-access servicing points make maintenance and servicing easy. image

Easy-access service points

Tilting hood makes maintenance quick and easy

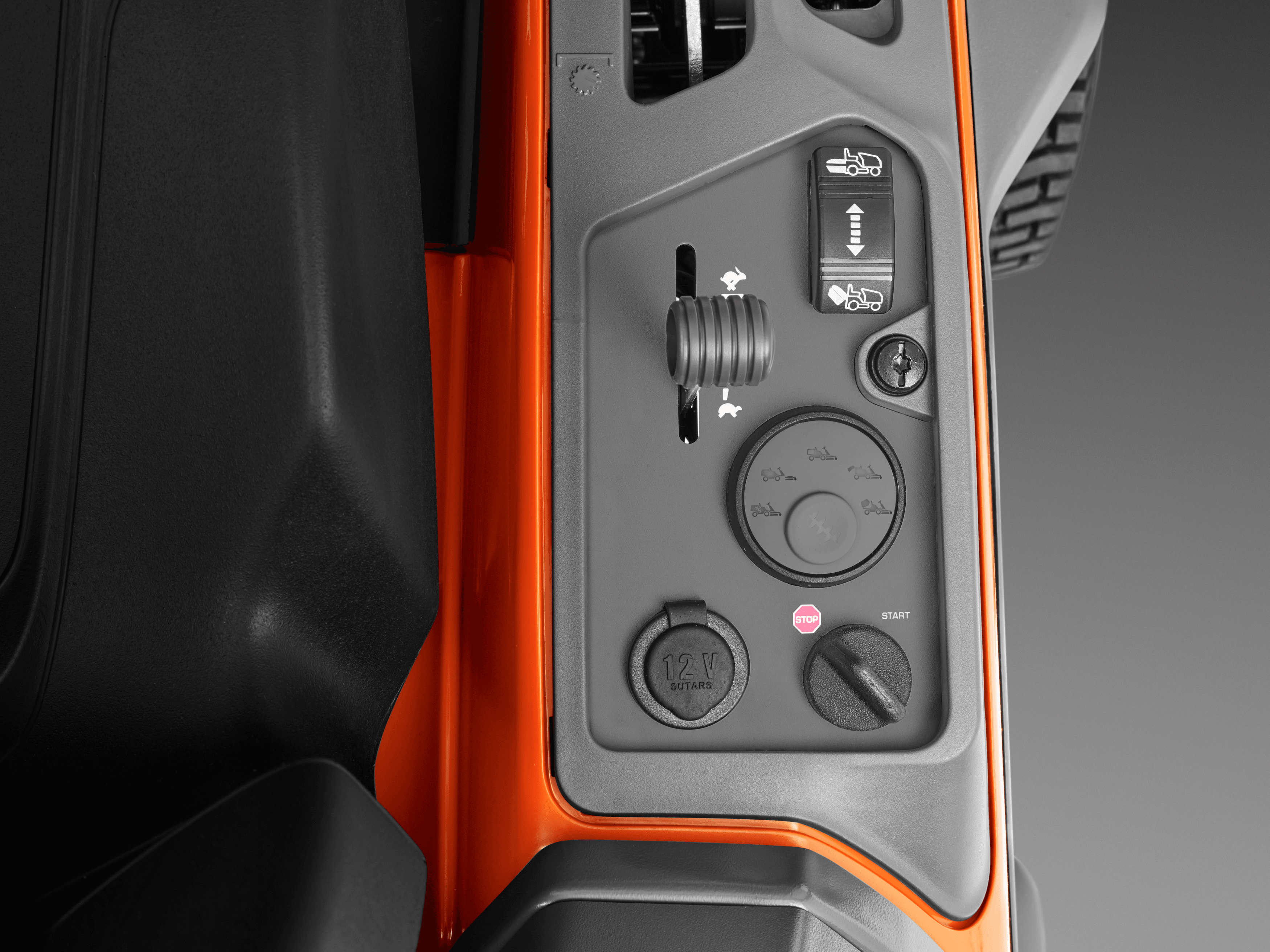

Controls are easy accessible and designed for optimum user comfort. image

Easy-access controls

Easy-access controls for user comfort

Front-mounted cutting deck

Front-mounted deck for optimum accessibility

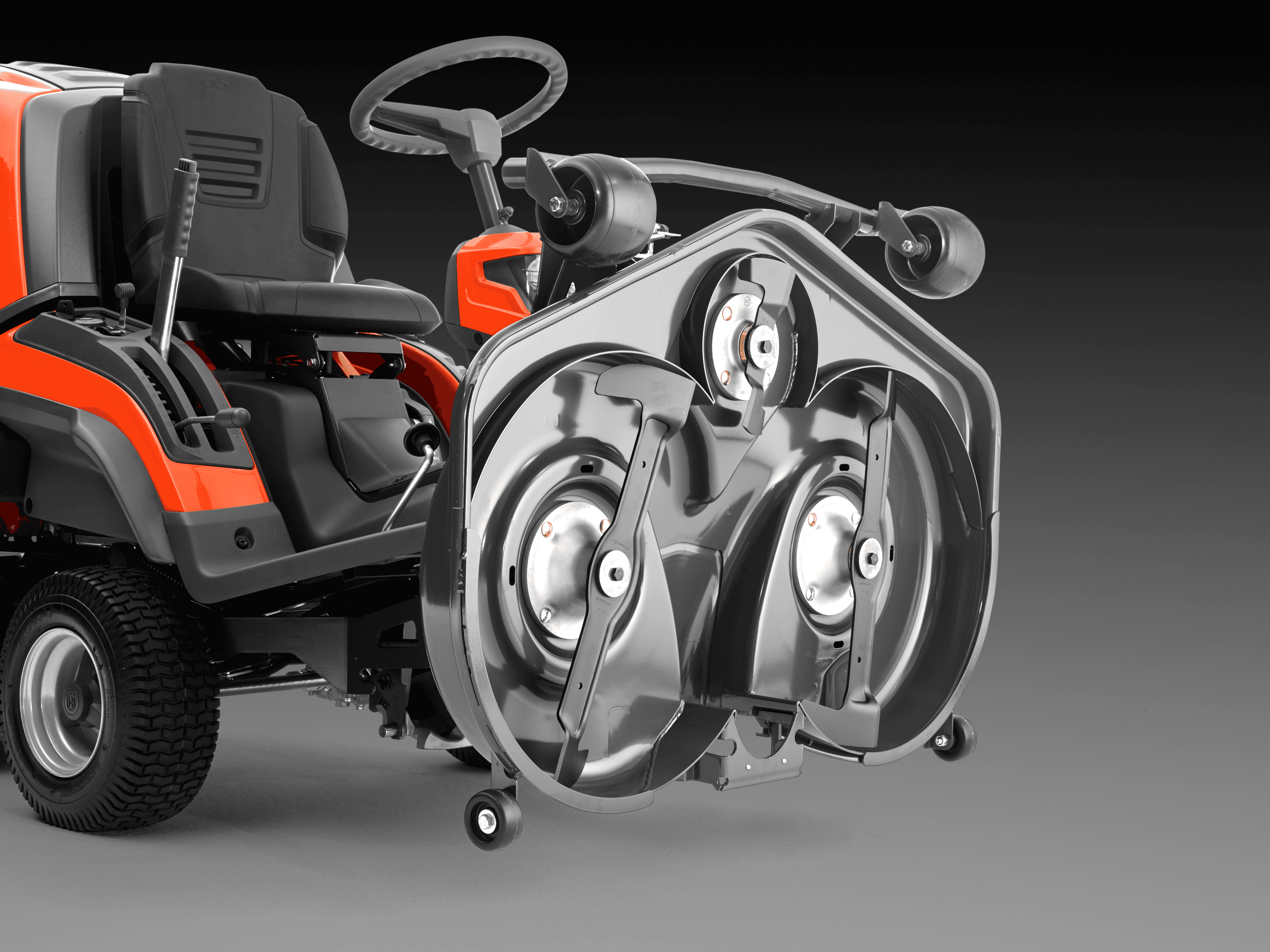

Service position

Service position for easy deck maintenance

Large wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces. image

Four large wheels

Equally sized wheels for a comfortable ride

Automatic blade engagement

The blades are engaged automatically, when you lower the cutting deck.

The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride also on uneven surfaces. image

Pivoting rear axle

Pivoting rear axle for maximum traction

With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low gravity centre contributes to extra good traction as well as a comfortable 'sit-in' feeling for the user. image

Comfortable driver's position

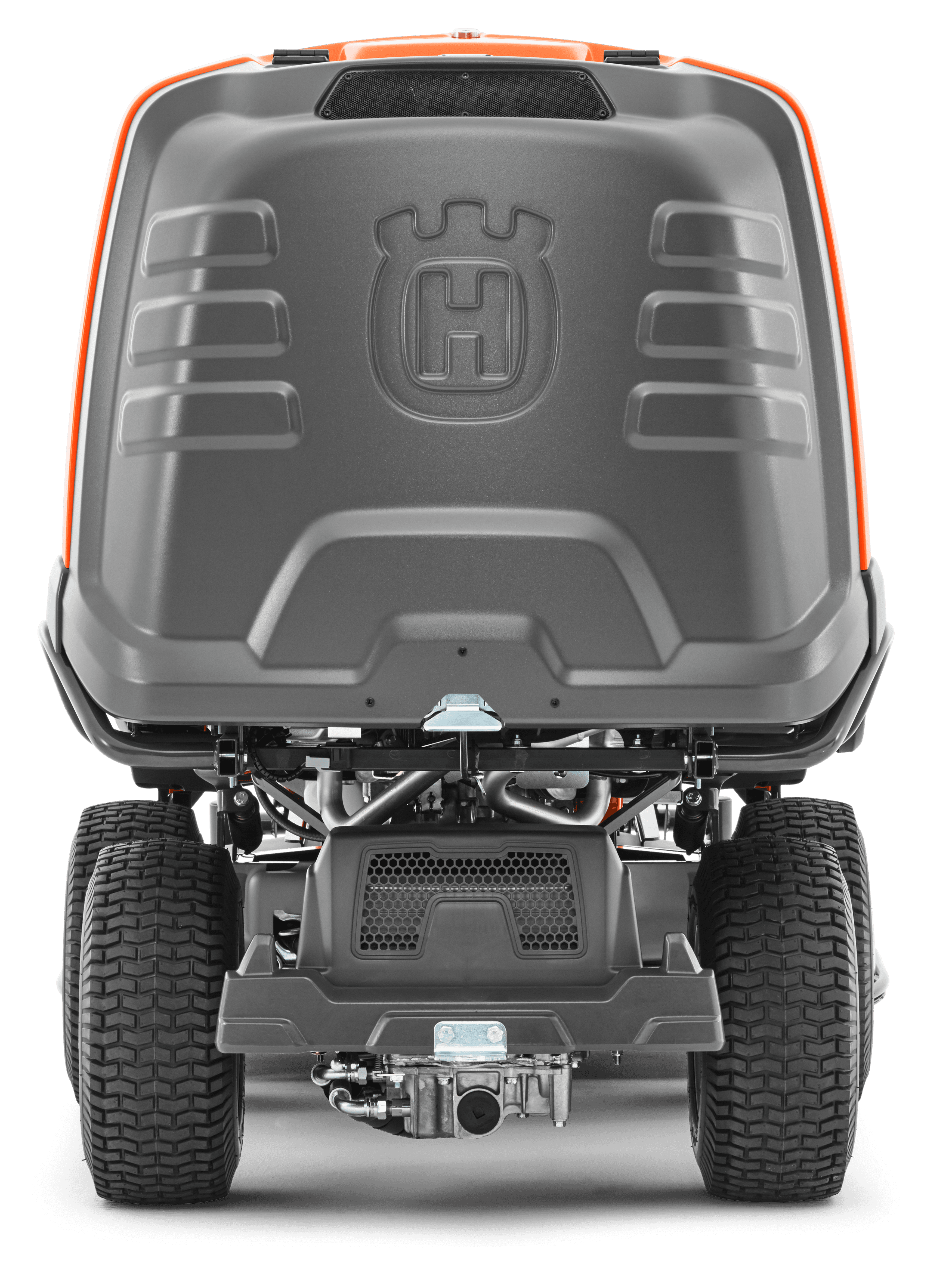

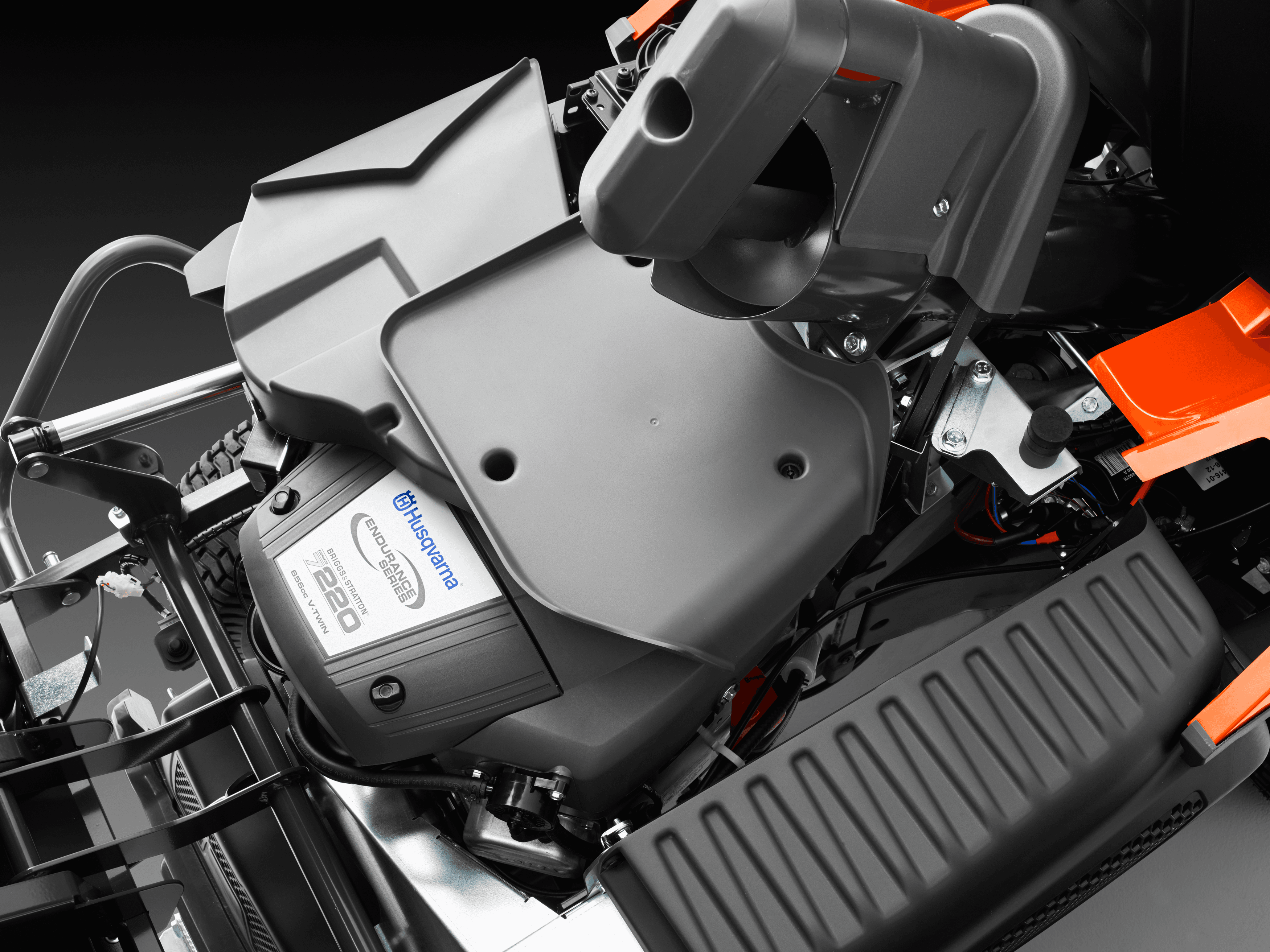

Thanks to the rear-mounted engine, you get better overview of the mowing and less noise and emissions in the driver’s area. image

Engine behind driver

Engine behind driver for better overview

Floating cutting deck

Floating cutting deck for reduced risk of scalping

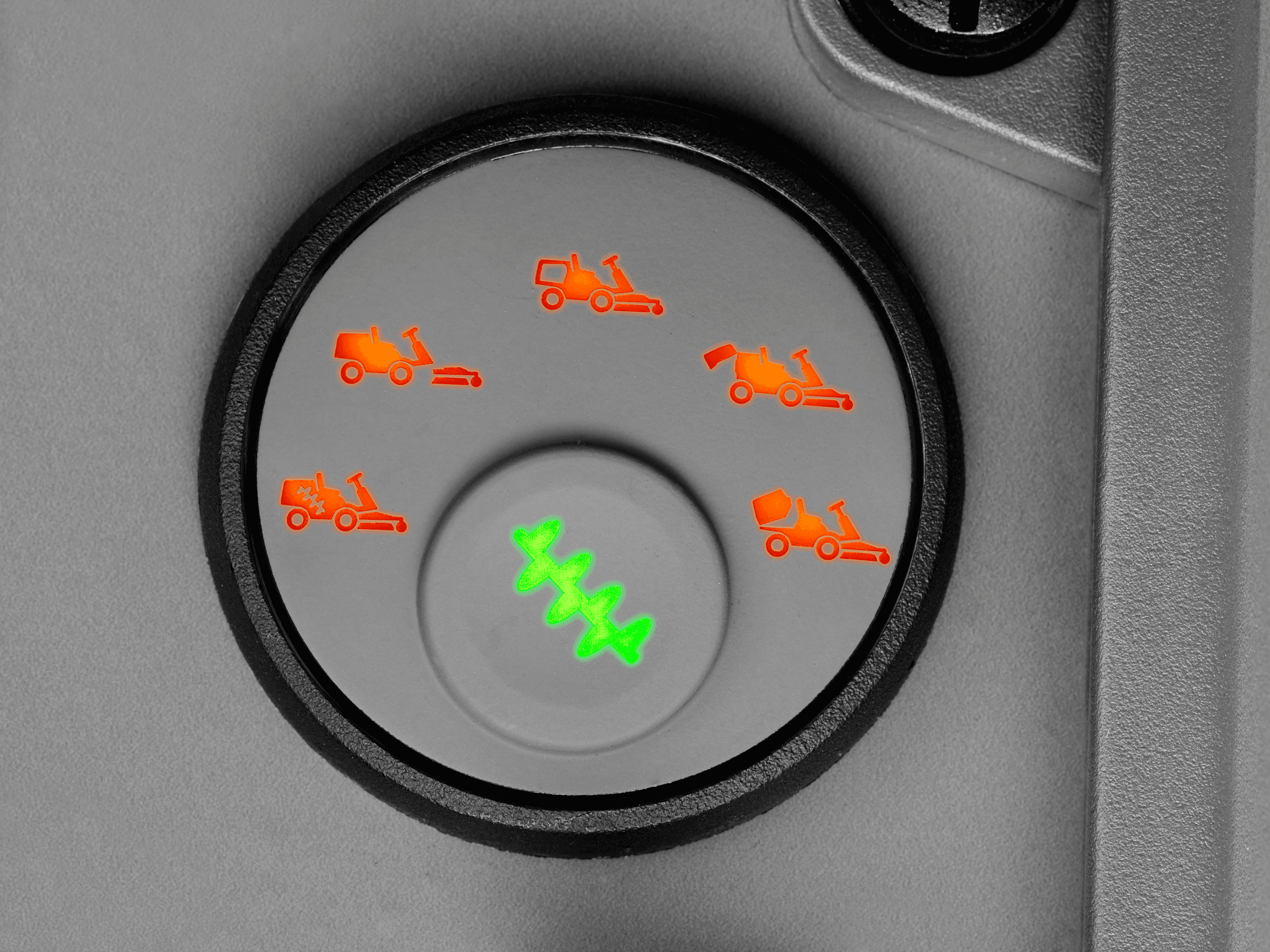

Indicates when it's time to service your mower. image

Hour meter with service minder

LED headlights

Gives over 50% larger lighted area compared to traditional incandescent lights.

Makes it possible to plug in extra electric equipment, charge<br/>your cellular phone etc. image

12V socket outlet

12V socket outlet for electric equipment

The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing. image

Easy-access cutting height lever

External fuel cap

External fuel cap for easy refueling

The cutting deck is equipped with pivoting wheels for extra smooth operation when making turns. The wheels also prevent damage to the lawn surface. image

Pivoting support wheels

Pivoting support wheels on the cutting deck

Large fuel tank with transparent panel allows easy checking of fuel level. image

Transparent fuel tank

Easy fuel level check by transparent fuel tank

Easy to shift between cutting decks and front-mounted attachments, such as broom and flail mower. image

Attachment frame

Attachment frame for maximum versatility

Specifications	Art No: 967628811
Output shaft power	12.6 kW
Weight (excl. cutting equipment)	328 kg
Cylinder displacement	656.0 cm³
Weight (complete product w/o side packed articles)	328 kg
Fuel tank volume	12 l
Sound pressure level at operators ear	85.0 dB(A)
Collector volume	300 l
Base machine, height	128.4 cm
Base machine, length	208.9 cm
Base machine, width	103 cm
Battery capacity	5.5 Ah
Battery pack weight	1.1 kg
Battery voltage	12.8 V
Cutting height max	75 mm
Cutting height min	25 mm
Cutting width, max	112 cm
Cutting width, min	103 cm
Fuel consumption	360 g/kWh
Fuel tank volume	3.17 gal (US)
Ground clearance	90 mm
Net power at preset rpm	3100 rpm
Net power at preset rpm Energy	12.6 kW
Oil capacity	1.9 l
Sound power level, guaranteed (LWA)	100.0 dB(A)
Sound power level, measured	99.0 dB(A)
Speed forward max	8 km/h
Speed reverse max	7 km/h
Uncut circle	60 cm
Vibration level seat	0.7 m/s²
Vibration level steering wheel	2.6 m/s²
Wheelbase	90.3 cm
